IXION 90

IXION90

This luminaire is developed for vertical crops where power is needed to cover more area but the installation spaces are reduced.

Description

IXION90 luminaire is developed for vertical crops where power is needed to cover more area but the installation spaces are reduced. Thanks to its flat design and hanging system by means of fixings, IXION90 can be installed in almost any space and its dimmable option makes IXION90 an essential tool for vertical crops or crops that need an adaptation period with varying levels of PPFD.

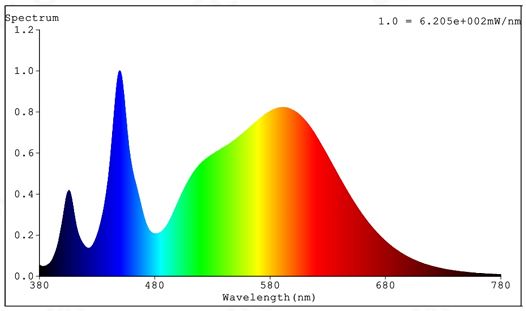

The spectrum that has been developed has been with diodes of the Seoul Semiconductor brand, model Sunlike. This chip is unique in the market because it contains from UV-A to FR (Far-Red) making an individual diode contain all wavelengths in the PAR range and several outside this range simulating a large percentage of solar energy. By having many wavelengths, the efficiency of the diode is low but this means that the spectrum is very complete.

This luminaire is developed for any stage of crop growth.

DATA SHEET



Additional information

Weight 0,85 kg
Dimensions 111,6 × 5,5 × 3,5 cm
Power Consumption (Wh)

90

PSU Power Factor

>0,95

Voltage

100-240 VAC (50 /60 Hz)

Current range

1.5 A@100V,0.54 A@277V

Isolation Class

Class I

Dimming method

0-10v

Diode brand

Seoul Semiconductor

Diode model

Sunlike chip

Spectrum

Full spectrum PBAR with Sunlike Chip from Seoul Semiconductor

Operational conditions

0°C to 40°C (95% HR)

Storage conditions

-40°C to 70°C (85% HR)

Warranty

5 years against manufacturing defects
